How the system fits together

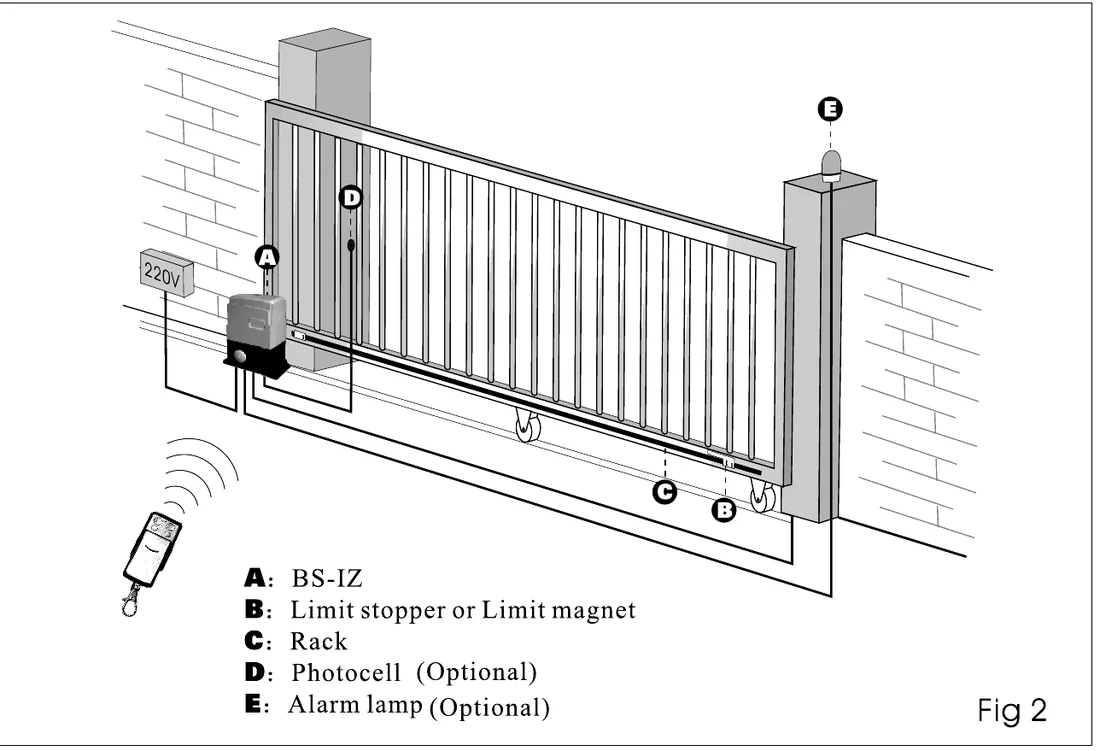

The BS-IZ motor sits on the ground beside the gate. Its pinion meshes with a gear rack fixed to the gate, so when the pinion turns the gate slides. The control board and remote receiver are built into the motor.

• Limit stops: two points on the rack (fully open and fully closed). There are two types: mechanical (steel stoppers) and magnetic

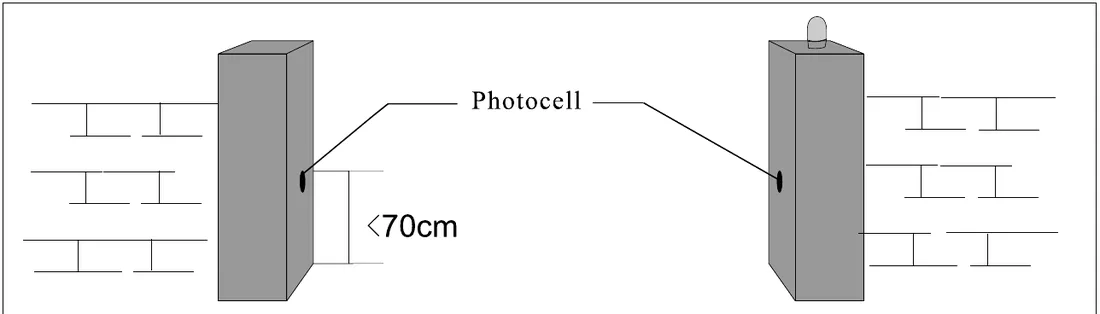

• Safety photocells: mounted on both posts, no higher than 70 cm. If a person or car is in the way while the gate is closing, the gate stops or reverses
• Flashing lamp: flashes while the gate moves
• Wall push button: optional, to open, close or stop from inside

What is in the box

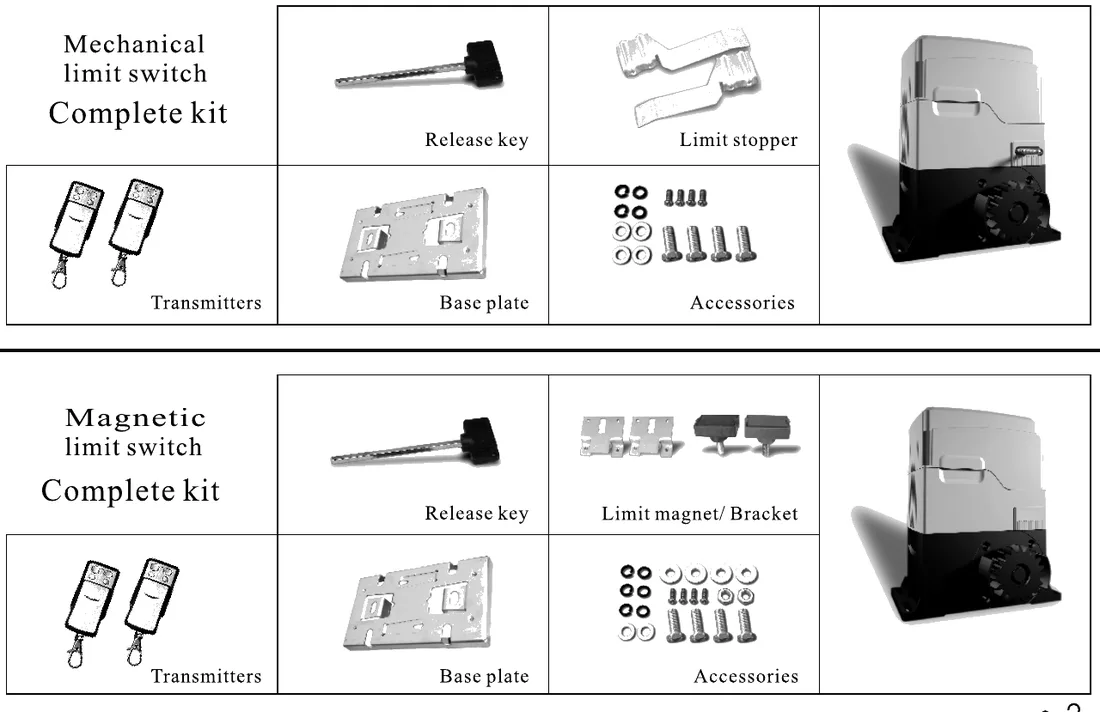

Every kit includes 2 remotes, 1 release key, a base plate and fixings. The mechanical kit has steel stoppers; the magnetic kit has magnets and brackets. Keep the release key and spare remote somewhere safe.

Technical data

Rated operating time of 5 minutes means the motor is designed to run continuously for about 5 minutes. If the gate is opened and closed many times in a row, the thermal protection cuts power to the motor for a while to stop it burning out. The motor is not broken.

IP44 protects against splashes and rain, but not flooding. Do not let water pool around the base, and do not pressure-wash the motor.

Everyday use

• Remote: press the button your installer set up. Range is best with a clear view of the motor and no metal walls in between
• Auto-close: if enabled, the gate closes by itself after the set delay once fully open
• Photocells: do not leave objects or park in front of them. If a photocell is blocked, the gate will not close
• Flashing lamp: when it flashes the gate is about to move or moving; wait until it stops before passing

Settings your installer can adjust

These are set on the control board inside the motor, which carries 220V. Please do not open the cover yourself, but it helps to know what can be changed so you can ask us:

Opening the gate by hand (power cut or motor fault)

1. If there is power but the motor has a fault, switch off the motor's breaker first

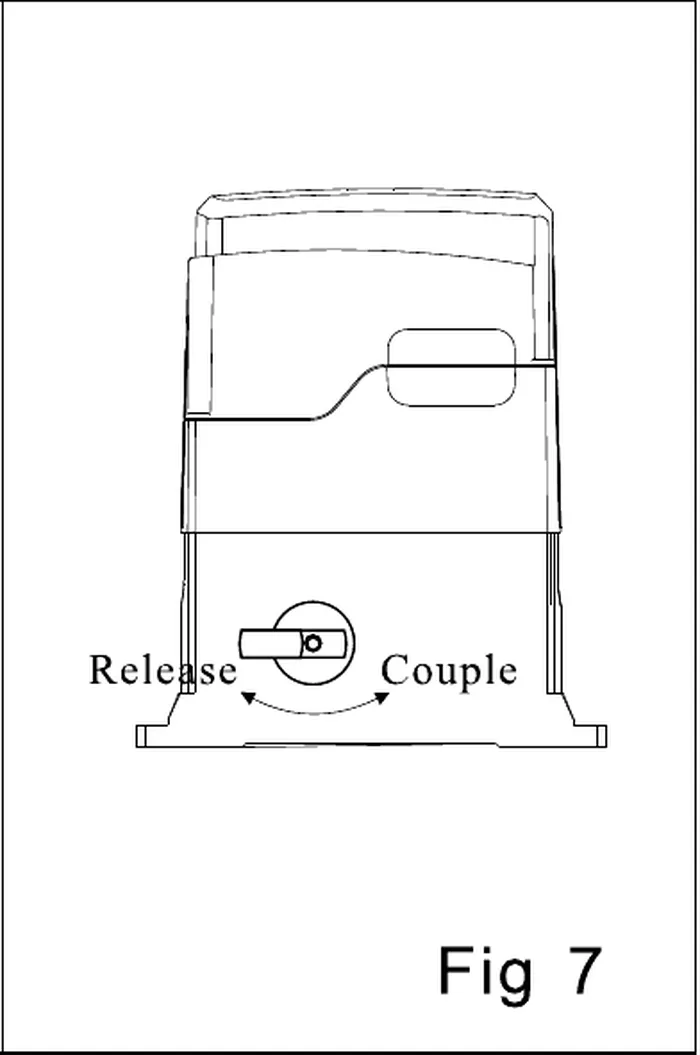

2. Insert the release key into the keyhole on the front of the motor
3. Turn it towards Release (clockwise) as far as it goes. Do not force it
4. Slide the gate slowly by hand. It should move easily if the track and wheels are in good condition
5. When power returns: turn the key back to Couple, then move the gate back and forth slightly until the gears engage and the gate no longer slides by hand
6. Switch the breaker back on and test with the remote

Important: if you forget to turn the key back to Couple, the motor runs but the gate does not move. Keep the key where everyone at home knows, but children cannot reach.

Adding or removing remotes

• Add a remote: the technician presses the LEARN button on the board, the LED lights, then presses the new remote's button until the LED flashes and goes out. Several remotes can be added
• Erase all remotes: hold LEARN until the LED goes out; every stored remote is erased
• Both require opening the motor cover, which carries 220V. Please let a technician do it
• Lost or stolen remote: ask us to erase all codes, then add back only the remotes you still have

Troubleshooting

Keeping it in good shape

Safety

• Do not let children play near the gate or with the remote; keep remotes out of reach
• Do not stand, walk or drive through while the gate is moving; pass only when it is fully open and stopped
• Keep hands and fingers away from the pinion and rack
• Do not open the motor cover, repair or modify it yourself
• A damaged power cable must be replaced by a technician
• If the gate moves unusually, is noisy or jerky, stop using it and call us

Alisa installs and services BS-IZ motors and supplies parts such as remotes, photocells and gear racks.
